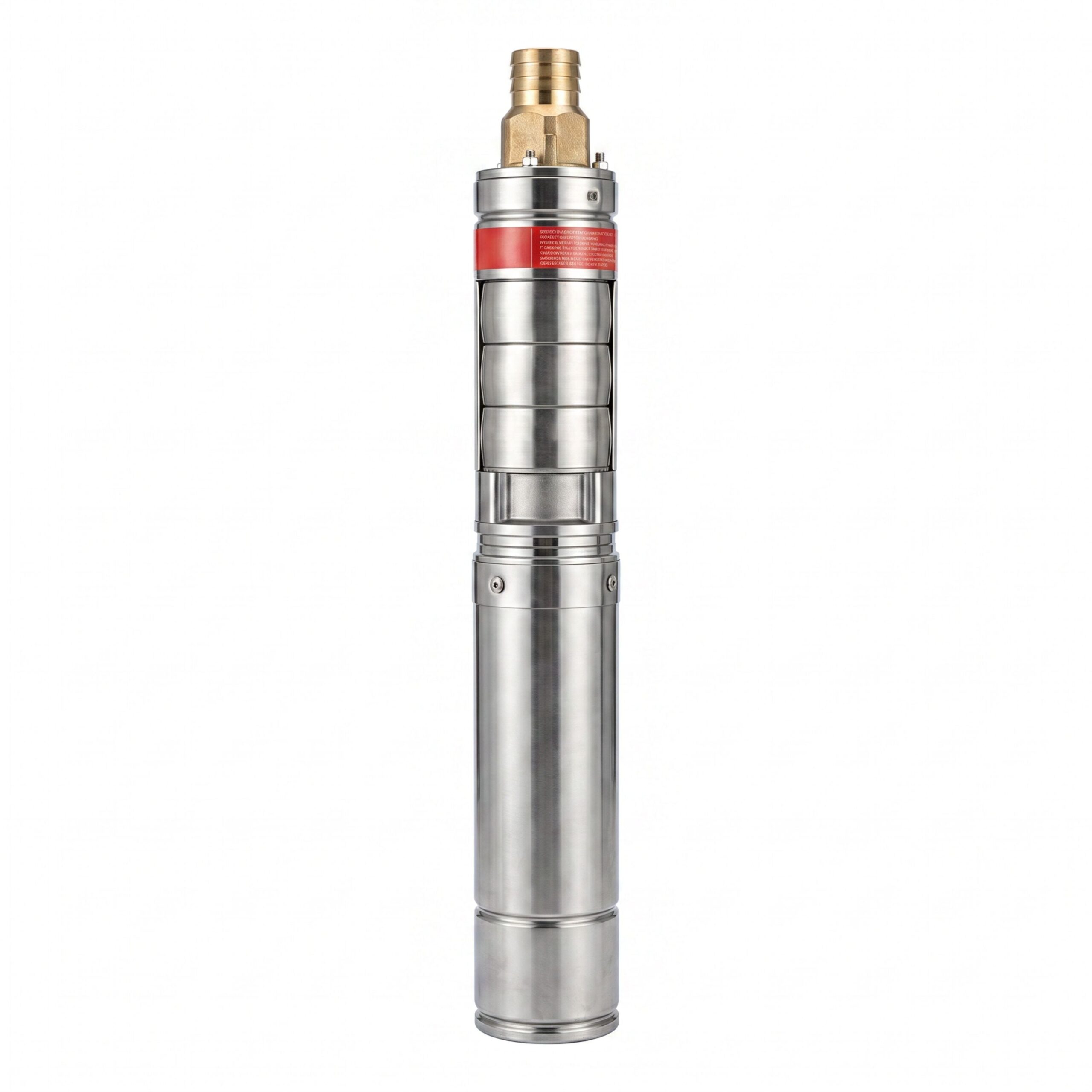

Hydraulic Performance Curve – 3AGS2-150-48-750

Description

This Hydraulic Performance Curve 750W solar water pump is the ultimate off-grid solution for anyone needing reliable water delivery for agricultural irrigation, livestock watering, or borehole pumping. Designed to perform in remote or rural areas, this solar-powered irrigation system delivers a steady flow rate of 2 m³/h and can push water to a maximum head height of 150 meters, making it ideal for deep well or borehole applications.

Whether you’re running a solar pump for irrigation on a medium-sized farm or setting up a solar pump for livestock watering, this system provides consistent performance powered entirely by the sun. Compatible with 3 to 4 × 370W solar panels, this off-grid water pump eliminates the need for ielectricity or fuel, reducing both your carbon footprint and your running costs.

Built with a durable 48V 750W brushless DC motor, the pump is highly efficient and low-maintenance. The included MPPT controller ensures maximum solar efficiency throughout the day, while the adjustable speed control allows you to tailor the flow to your specific needs. Dry-run protection is also built in, preventing the pump from operating when water levels are too low.

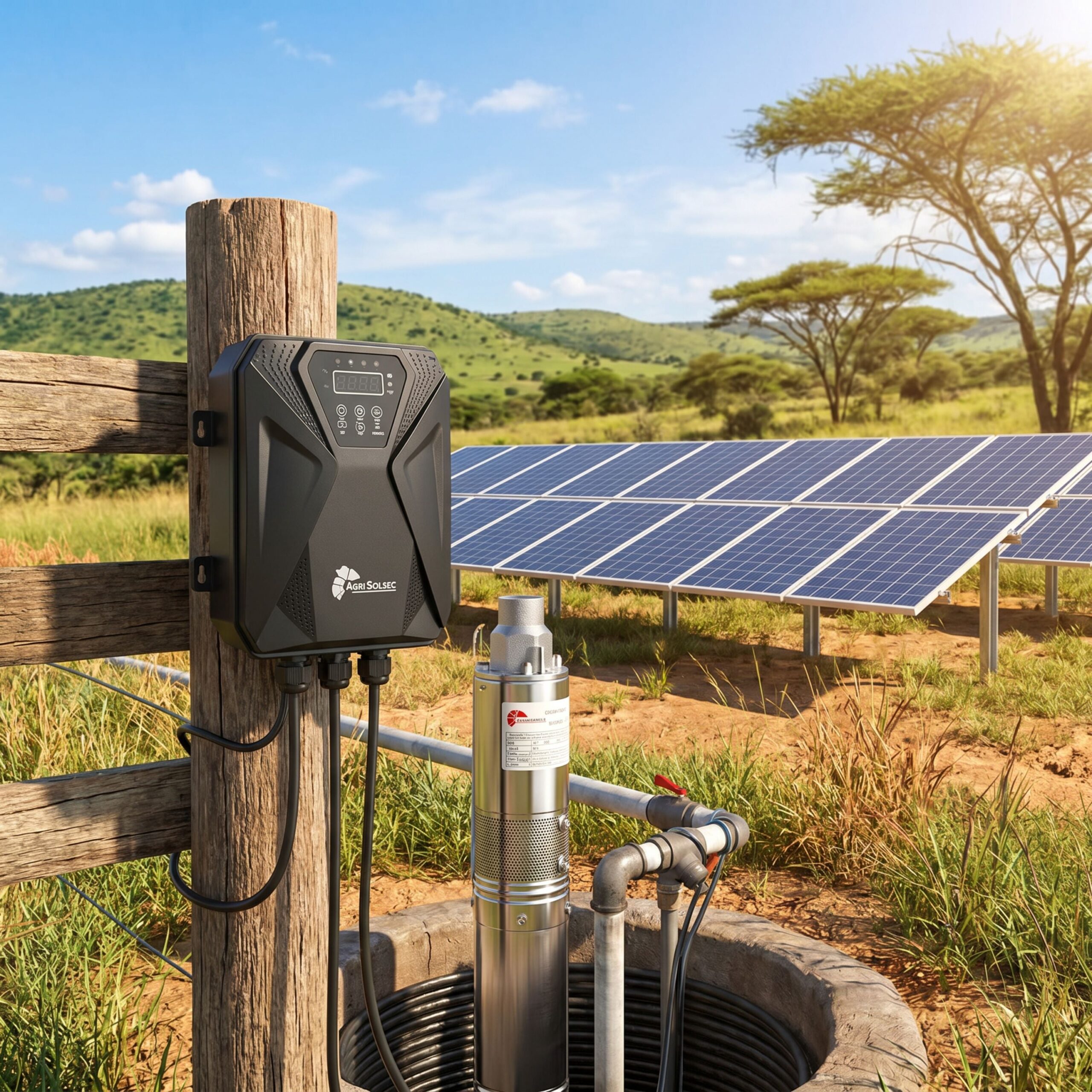

Off-grid solar pumping

Key Features:

• 750W brushless DC motor (48V)
• Max Head: 150m | Flow Rate: 2 m³%?
• Max Suction/Water Depth: 30m
• Ideal for medium-sized agricultural irrigation and livestock watering

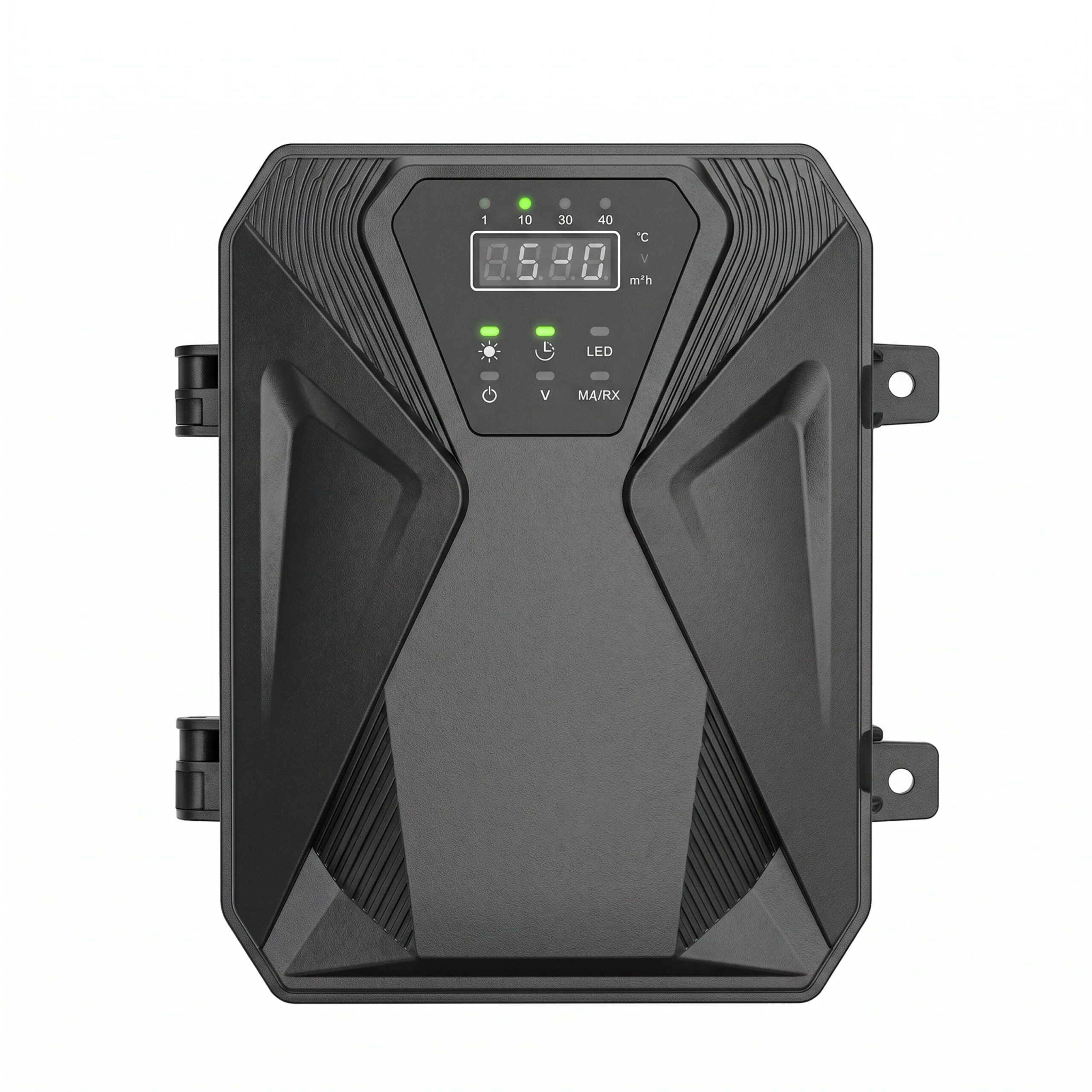

• Includes MPPT controller, adjustable speed, and dry-run protection
• Compatible with 3 to 4 × 370W solar panels
• Eco-friendly, off-grid solution with zero operational costs

Specifications
