Hydraulic Performance Curve – 3AGS2-150-72-750
R6500,00

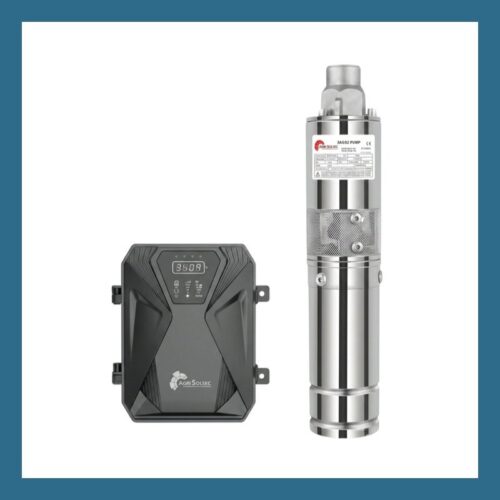

Agri Solsec solar pump model 3AGS2-150-72-750 — 750W solar submersible pump on a 72V system. Higher voltage configuration for improved efficiency over longer cable runs and greater depths.
Description
A 750W 72V solar pump for medium-scale irrigation and multiple water points. 2 m³/h flow at up to 150 m head, with MPPT, dry-run protection, and adjustable speed.
750W brushless motor delivers a consistent 2 m³/h flow up to 150 m head. Sized right for medium farms running multiple water points off a single bore.
Higher 72V architecture cuts cable losses on long runs from panel array to pump. Pairs with 3 to 4 × 370W solar panels.
MPPT controller, dry-run protection, and adjustable speed are all included. Set up once and the pump looks after itself through the seasons.
- 1 × 750W 72V solar pump (3AGS2-150-72-750)
- 1 × MPPT controller
- 1 × User manual
Specifications
- Power: 750W (72V)
- Flow Rate: 2 m³/h
- Max Head: 150m
- Max Water Depth: 30m
- Recommended Use: Medium-scale irrigation, multiple water points
- Solar Panels: 3 to 4 × 370W
- Includes: Adjustable speed control, MPPT controller, dry-run protection
- Pump Size: 4-Inch (Max 60m Depth)
Specifications
Model – 3AGS2-150-72-750
Power – 750W
Voltage – 72V
Flow rate – 2 m³/h
Max head – 150 m
Max water depth – 30 m
Solar panels required – 3 to 4 × 370W
Recommended use – Medium-scale irrigation, multiple water points
Includes – MPPT controller, dry-run protection, adjustable speed
Warranty – 12-month manufacturer warranty
